Chilli Grinding Plant

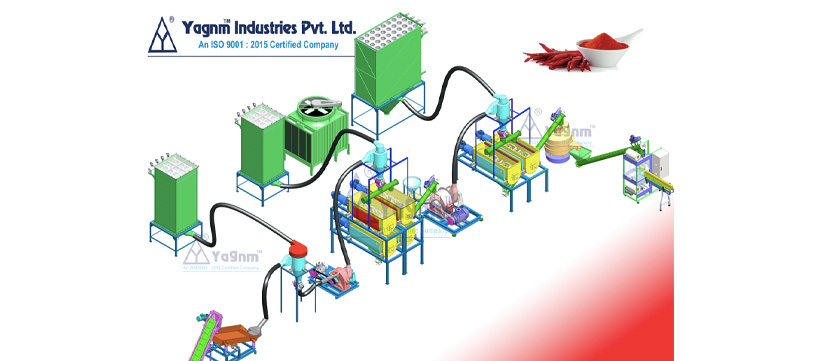

Chilly Grinding Plant is economical unit specially designed for specially Chilly for time saving operation. The Chilly Cleaning machine is removing all mud balls, fine sand and broken steams. While chilly moving on the screen of Chilly cleaning machine big stones are also moving along with the chilly. The big stones are fall down before clean chilly is entering into the Suction mouth of coarse grinding mill. The coarse grinding mill grinding chamber is fitted with serrated fine liners and main shaft assembly is fitted with bar type Hammer which is fixed with carbide tip for long life of hammer.

The inbuilt Air Blower is specially designed to suck all the ground chilly without getting high temperature. The mixture of air and ground chilly is delivering to cyclone separator through the air tight pipeline. The cyclone separator is efficiently separate air and coarse ground chilly. The coarse ground spices are getting collected through Rotary Air Lock valve at the bottom with dust free operation. The dirty air is separated from top of the cyclone separator and passes though the pipe into the Pulse Jet Dust Collector. The Pulse Jet Dust Collector is fitted with non woven oil repellent and moisture repellent air filter which is separate the dust and clean air.

The clean air is passes away into the atmosphere from the top of the Pulse jet dust collector. The Ribbon mixer cum dryer is drying the coarse ground chilly for 30 minutes by the LPG burner. The temperature controller is available to set the heat. The Ribbon mixer cum cooler is cooling the coarse ground chilly for 30 minutes with the help of cooling tower cool water. The cool coarse ground chilly is transfer through the Screw conveyor unit to the fine grinding mill. The Feed hopper is suitable to store all the spices. Below the feed hopper Vibratory Feeder is fitted. The Vibratory feeder is regulates its speed by speed controller to regulate feed of all the spices before entering into fine grinding Mill.

The fine grinding mill grinding chamber is fitted with serrated fine liners and main shaft assembly is fitted with bar type Hammer which is fixed with carbide tip for long life of hammer. The inbuilt Air Blower is specially designed to suck all the ground chilly without getting high temperature. The mixture of air and ground chilly is delivering to cyclone separator through the air tight pipeline. The cyclone separator is efficiently separate air and coarse ground chilly.

The coarse ground chilly is getting collected through Rotary Air Lock valve at the bottom with dust free operation. The Rotary Sieving machine is screen the ground chilly powder separates fine and coarse. The dirty air is separated from top of the cyclone separator and passes though the pipe into the Pulse Jet Dust Collector. The Pulse Jet Dust Collector is fitted with non woven oil repellent and moisture repellent air filter which is separate the dust and clean air. The clean air is passes away into the atmosphere from the top of the Pulse jet dust collector.
