Micro Pulverizer (Screen Type Equipment), conventional in design, has it's own advantages for various applications. A build-in water circulation jacket retains grinding temperature lower than otherwise. Design provides for admitting extra air during grinding to facilitate cool operation. Soft to medium hard materials are quickly pulverized to fine powder. Improved mixing and dispersion are added advantages of such mills. Quite popularly, it is also called high speed close tolerance Hammer Mill. Micro pulverizer machine manufacturers, suppliers, exporters, dealers and traders in India and worldwide from Gujarat and Mumbai since 1960 as per the ISO standards with required industrial features and specifications.

Working Principle

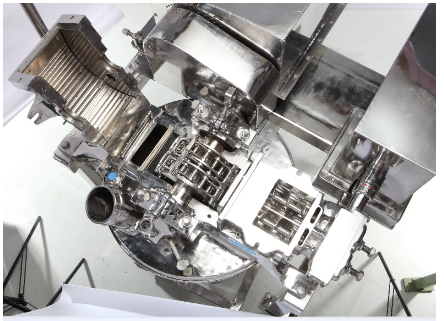

Micro-Pulveriser consist of a rotor assembly, fitted with hammers generally operating at a high speed; a cover fitted with either a multi deflector or plain liner; a retaining screen at the point of mill discharge and a feed screw mechanism whereby the unground material is uniformly fed to the grinding chamber. The grinding action in Micro Pulveriser takes place due to impact between rapidly moving hammers and the particles on liner.

  • Chemical
  • Pesticides
  • Minerals
  • Spices
  • Food
  • Bakery & Confectionery
  • Pharmaceutical
  • Powder Coatings
  • Pigments & Colours
  • Guaranteed performance
  • GMP grade models available.
  • Specially designed pulverizers for Carbon Black applications.
  • Availability of water-cooled and Air-cooled bearings for high temperature applications.
  • Modern, Economical, Simple
  • Compact & Highly efficient

Standard Supply

Model No. Mill Motor Horse Power
( H.P. )
Capacity ( Range )
kgs / hr / operation
Maximum Permissible feed size
Fineness range Abrasiveness & Hardness handled
SM – 1500 20 - 30 50 to 750 10 150 to 400 mesh BSS & Finer Medium & upto 3 on Moh’s Scale
SM – 25 40 - 60 50 to 750 10 150 to 400 mesh BSS & Finer Medium & upto 3 on Moh’s Scale
