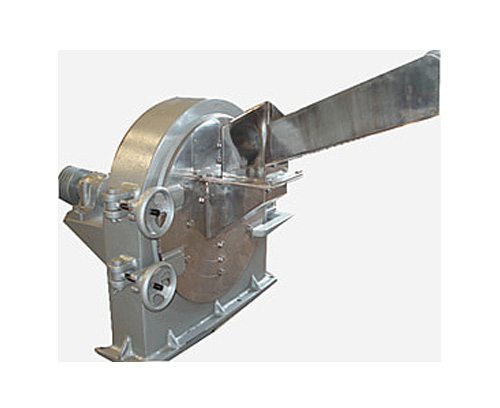

Pin Mill is specially designed to deal efficiently and economically with a wide range of materials and can be easily adjusted to give the fineness required from a coarse granulation to finely ground powder.

Pin Mill is gradualliy done from the centre to the periphhery of the Rotor, allowing heavy pieces of material to be reduced by stages to the fineness required. Constructional materials and the operating components are manufactured out of the best applicable raw materials, so as to yield close particle size for a uniform product.

Pin Mill yields greater output in relation to the Electrical Energy consumed, since the material to be ground is fed automatically in the centre of the Rotor by the Feed Hopper provided with an automatic vibrating tray at the Feed Gate.

Pin Mill is subjected to rigid Final inspection and actual Grinding Tests at our Experimental Station before it is delivered to the Stores for despatch. Grinding Tests with your materials can also be carried out without obligation, to testing the suitability of the Pulverizer for your satisfaction.

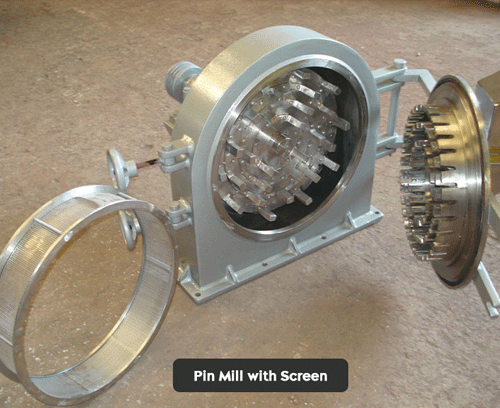

Pin Mill fitted with Feed Hopper, Set of Fixed Beater Plate, Set of Rotor Plate, Screen Drum with screem, Two extra screens & "V" Pulley for Machine.

M.S. Collection Chamber or Stand Adjustable pair of Slide Rails for Electric motor, Set of Air Balloons, Set of V-Belts, V-Pulley for Electric motor for M/c. Suitable Starter for motor, Ampere meter for load indication and Protective Sheet metal guard for drive.

Model
Type
Grinding Chamber Dia
in mm
Machine
RPM
Recommended Motor
HP / RPM
Over Dia in mm
L/W/H
Capacity
Kg/Hr(Upto)
PPB-600 600 1800-2000 40/1440 1150*920*1130 4000
PP-600 600 1800-2200 30/1440 1150*880*1130 3000
PP-500 500 2000-3000 20/1440 1050*880*1000 1500
PP-300 300 3000-4000 7.5/2800 1000*675*700 500
PP-200 200 3000-4500 3.0/2800 880*550*575 150
  • Dyesstuff
  • Pigment & Colour
  • Chemical Foodstuff
  • Spice
  • Coke
  • Wood-chips
  • Bakery & Confectionery
  • Agro
  • Ayurveda - Pharmaceutical
  • Dehydrated Fruit & Vegetable
  • Tea
  • Rare Earth
  • Cosmetic
  • Glass - Plastic
  • Bakelite & Resin
  • Mineral
  • Ceramic
  • Salt
  • Metallic Ore
  • Coconut Shell
  • Cattle Feed
  • Tobacco-Snuff
  • & Many More
  • (1) PERMISSIBLE FEED SIZE: UPTO 6.00 MM
  • (2) FINENESS ACHIVEABLE: UP TO 120 MESH OR 125 MICRONS
  • (3) PERMISSIBLE HARDNESS : UP TO 3 MOH'S SCALE
  • (4) PERMISSIBLE BRITTLENESS: MEDIUM TO HIGH
  • (5) PERMISSIBLE MOISTURE: UP TO 3 %
