The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery. Increasing the top eccentric mass increases the horizontal throw causing oversize material to discharge at a fast rate. The bottom eccentric weight rotates below the centre of vibrating mass creating it on the screen giving vibration in vertical & tangential planes.

Increasing the vertical component of motion which promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. The effective vertical motion helps in minimising blinding of screen by near size particles. The tangential component of motion is controlled by the angle of lead given to bottom weights with relation to top weight

Working Principle

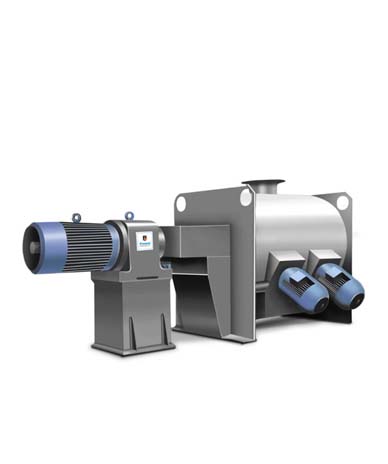

This is a horizontal mixer consisting of a horizontal, cylindrical container enclosing plough shaped mixing elements mounted on a horizontal shaft.

The mixing effect is increased by separately driven, high speed rotating choppers or multiple choppers, which in cooperation with the plough shaped mixing elements, disperse the lumps and agglomerations or pasty additives with the powdery carriers. These Mixers can be provided with liquid feeding devices, jackets for heating/cooling, choice of seals, vacuum suitability for drying and varied material of construction (like mild-steel, stainless steel, Hastelloy, Monels) to suit the process materials.

The Mixer is also provided with a solvent recovery system.

  • Aspirin
  • Ceramic Industry
  • Detergent Powder
  • Abrasives
  • Ceramic Slip
  • Edible Oil
  • Polymer Resin
  • Plastic
  • Milk of Lime & Coating
  • Preparation Plant
  • Gland Section
  • Sulphur Powder
  • Palets Powder
  • Metal Powder
  • Starch Slurry
  • Indulator Slip
  • Paints
  • Bulk Drug
  • Petroleum Coke
  • Pharmaceutical
  • Sodium Sulphate
  • Petroleum
  • Coke
  • Cattle Feed
  • Chemicals
  • Gelatin
  • Back Liquor
  • Sand & Glass
  • Cellulose Powder
